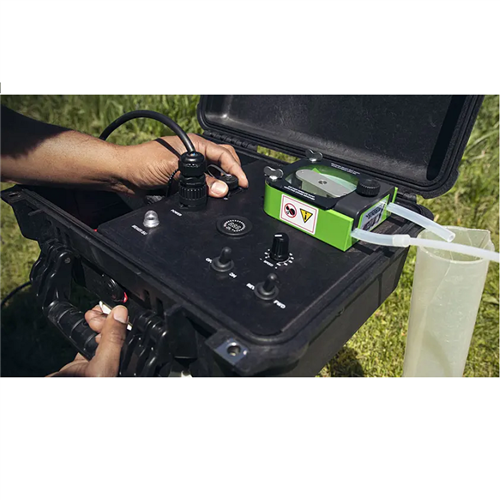

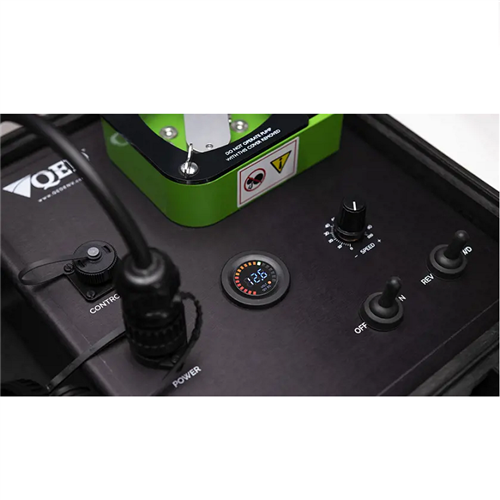

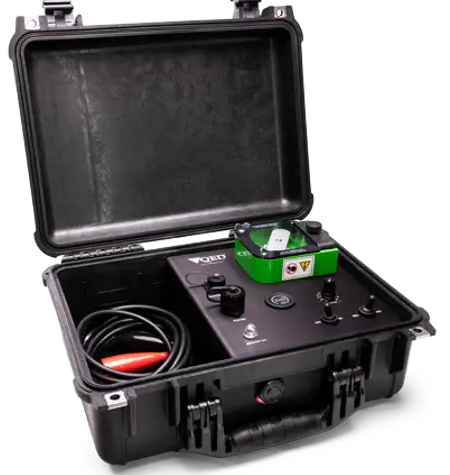

MicroPurge MP100 Purge Peristaltic Pump. FIELD READY DESIGN WITH PRECISE FLOW RATE CONTROL. Peristaltic pumps are widely used for sampling shallow groundwater for low-flow purging and sampling. They're uniquely well suited to sampling for PFAS since the water sample only contacts the tubing in the well and around the pump head, making a PFAS-free dedicated sampling system simple and economical.
Pump type: Two roller peristaltic pump with brushless DC motor, fixed stator housing and removable guard cover; Power source: 12VDC storage battery (SLA, AGM) or 12.6V @ 3A minimum power supply,
- Pump type: two roller peristaltic pump with brushless DC motor, fixed stator housing and removable guard cover
Power source: 12VDC storage battery (SLA, AGM) or 12.6V @ 3A minimum power supply
Operating Current: 2.0A
Pump Tubing Sizes: L/S 15, L/S 24, L/S 35 (see operators manual for detailed tubing specifications)
Flow rates:
- L/S 15: 550 ml/min @ 15 feet (4.6m) lift; 700 ml/min maximum, < 10 ml/min minimum
- L/S 24: 650 ml/min @ 15 feet (4.6m) lift; 1,100 ml/min maximum, < 10 ml/min minimum
- L/S 35: 480 ml/min @ 15 feet (4.6m) lift; 1,500 ml/min maximum, < 10 ml/min minimum
Maximum lift depth: 30 feet (9m) at sea level*
Case Dimensions: 16.5” L x 13.0” W x 7.0” H (42cm L x 33cm W x 17cm H)
Weight: 13.5 lbs (6.1 kg)
Warranty: 1 year (see operators manual for details)
RoHS Compliance: RoHS 3 (2015/863/EU) with exemption 6c
CE Compliance: Machinery Directive (2006/42/EC) when equipped with slotted screw pump head guard
MICROPURGE MP100 PUMP SYSTEM COMPONENTS
P24: Recessed well cap for 2” (50mm) Well Casing, 1/4” drop tube fitting with dust cover
P25: Recessed well cap for 2” (50mm) Well Casing, 5/16” drop tube fitting with dust cover
P26: Recessed well cap for 2” (50mm) Well Casing, 3/8” drop tube fitting with dust cover
P44: Recessed well cap for 4” (100mm) Well Casing, 1/4” drop tube fitting with dust cover
P45: Recessed well cap for 4” (100mm) Well Casing, 5/16” drop tube fitting with dust cover
P46: Recessed well cap for 4” (100mm) Well Casing, 3/8” drop tube fitting with dust cover
P100WT: Drop tubing weight kit, includes fittings for 1/4”, 5/16” and 3/8” OD drop tubing
42402: Silicone rubber pump tubing, 3/8” OD x 3/16” ID (equivalent to L/S 15 size), 25’ foot roll
42403: Silicone rubber pump tubing, 7/16” OD x 1/4” ID (equivalent to L/S 24 size), 25’ foot roll
42404: Silicone rubber pump tubing, 1/2” OD x 5/16” ID (equivalent to L/S 35 size), 25’ foot roll
P014-100: HDPE Drop tubing, 1/4” OD x 0.170” ID, 100-foot roll (use with L/S 15 tubing)
P516-100: HDPE Drop tubing, 5/16” OD x 3/16” ID, 100-foot roll (use with L/S 24 tubing)
P038-100: HDPE Drop tubing, 3/8” OD x 1/4” ID, 100-foot roll (use with L/S 35 tubing)
|
